BRC Fence Malaysia | BRC Fencing
BRC Fence (Wire Mesh Fencing)
Our BRC fence is manufactured from high tensile steel bars that are welded together that feature rolled triangle shape at the top and bottom of the fence. This rolled triangle shape enhances the strength of the fence, making it suitable to use at all types of perimeter boundary that required security and safety.
Standard Mesh Spacing
For BRC Fencing
Standard mesh spacing options:
- 150mm x 50mm
- 200mm x 50mm
- 300mm x 75mm
- 300mm x 50mm
Key features:
- Larger wire rod diameter compared to anti climb fence
- Available finishes: hot-dip galvanised, standard galvanised, and powder coating
- Strong corrosion resistance and long-lasting durability
- Suitable for outdoor perimeter security in residential, commercial, and industrial areas
150mm x 50mm | 200mm x 50mm | 300mm x 75mm a | 300mm x 50mm
Commonly Used Area
For BRC Fencing
Common uses of security fences:
- Private properties
- Schools
- Factories
- Linkways and other facilities
Added protection:
- Can be installed with razor wire or barbed wire on top
- Provides stronger perimeter security against trespassing
Private Properties, schools, factories, linkways
Benefits of Installing
Compared to a chain-link fence, both security fencing and BRC panels provide greater strength and durability thanks to their welded construction.
We also provide more appealing and versatile appearance, featuring a neat, uniform design and a range of colours with powder-coated finishes.
Additionally, the galvanized or powder-coated surfaces require minimal maintenance, making them a cost-effective choice over time.
BRC fence or Wire Mesh Fencing is manufactured from high tensile steel bars that are welded together that feature rolled triangle shape at the top and bottom of the fence. This rolled triangle shape enhances the strength of the fence, making it suitable to use at all types of perimeter boundary that required security and safety.
BRC Fence Malaysia

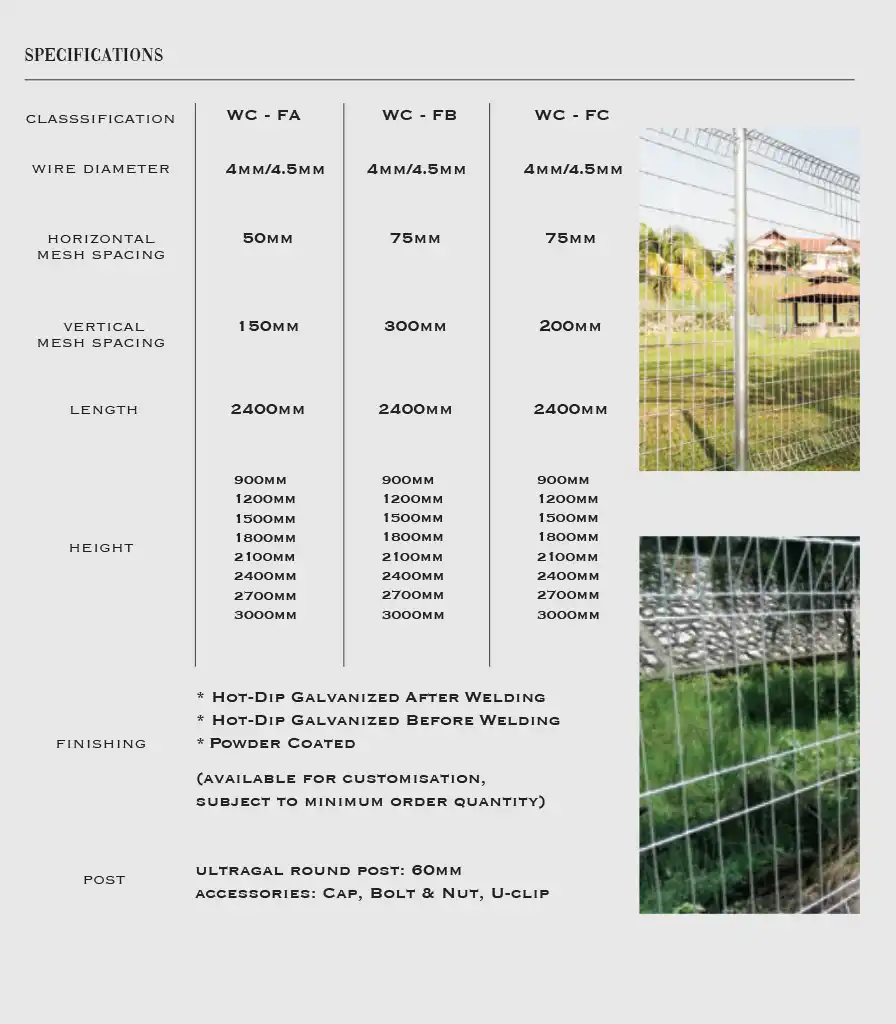

Product Specification
Frequently Asked Questions
A BRC fence also called security fencing is constructed by steel wires. The wires are welded or interlocked to form a mesh panel that makes up the main body of the fence.
The mesh panel will then send for a hot dip galvanizing process that prevents it from corrosion.
Steel posts are used to support and secure the mesh panels of the BRC fence. These posts are typically made from galvanized steel or other corrosion-resistant materials to ensure longevity and structural integrity.
U-clips and connectors are used to attach the mesh panels to the steel posts and join them together securely.
BRC fence or Security fence can last more than 10 years due to hot dip galvanized finishing. As explained earlier in the anti-climb fencing section, hot dip galvanized finishing is the most durable and strong in preventing corrosion.
Yes, BRC fence or Security fence is suitable for outdoor applications. It is commonly used for outdoor perimeter security, boundary demarcation, futsal courts, basketball courts, and any other outdoor fencing needs. This is due to the durability of the fence, weather resistance, longevity, strength and security, and versatility.
BRC fences or Security fences do not need regular maintenance. With hot dip galvanized finishing, BRC fence or Security fence can last more than 10 years from corrosion unless the fence is damaged by human acts or other natural disasters.
Yes, BRC fence or Security fence can be customized depending on customer needs and requirements such as the heights of the fence, type of finishing, size of the apertures, etc.
The installation of BRC or Security fence is considered straightforward. The fence is secured or tightened onto a galvanized steel post with stainless steel U-clips, bolts & nuts. However, it still requires proper planning, preparation, and expertise to ensure a successful installation. Here’s an overview of the installation process for a BRC fence: Site preparation, layout & marking, galvanized post installation, fence installation, connection & finishing, and finally final inspection.
BRC or Security fences do not provide sufficient security as compared to Anti-Climb fences. However, the presence acts as a visible deterrent to potential intruders. The robust appearance of the fence, combined with its height and construction, sends a clear message that the property is protected and entry is restricted.
Yes. BRC or Security fences are resistant to corrosion. This is because of the hot dip galvanized finishing.
Yes. BRC or Security fences can be powder coated into different types of colors depending on customer requirements and needs.
Yes, there are 2 designs for BRC or Security fences. There is a Roll-Top design where there are triangle bends on the top & bottom of the fence. Another design is a V-pressed fence where there are 2 to 3 V-shaped patterns on a panel of the fence depending on the height of the fence.
